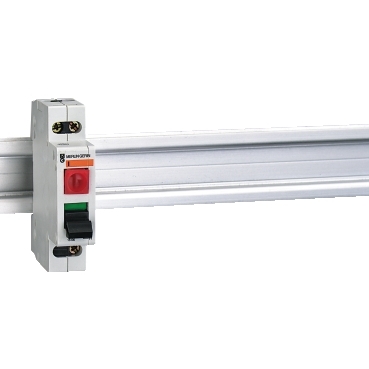

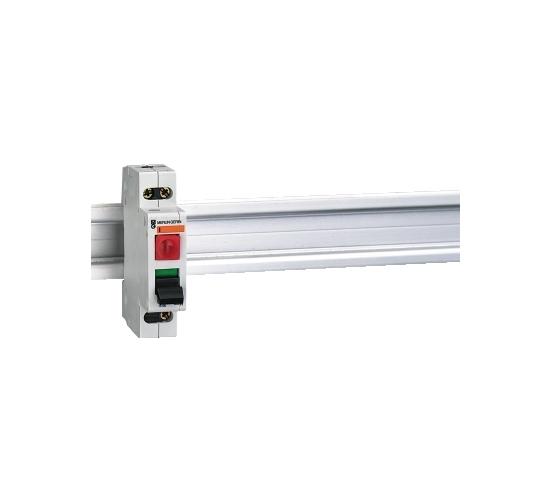

Превключвател със сигнална лампа 1P 32A/250V-15100 main image

Бутони и датчици изключватели

Превключвател със сигнална лампа 1P 32A/250V-15100

Арт. №: 60121
В наличност

Производител:

Превключвател със сигнална лампа 1P 32A/250V-15100

Цена на бр

17.62€ / 34.46 лв.

Количество

Бърза поръчка

Описание
Характеристики

Main
Product or component type	Switch
Device short name	I
Device application	Control
poles description	1P
Utilisation category	AC-22A

Complementary
[Ie] rated operational current	32 A at 250 V AC 50/60 Hz
[Ue] rated operational voltage	250 V AC 50/60 Hz
[Ui] rated insulation voltage	250 V AC 50/60 Hz conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage	4 kV
Control type	Toggle
Local signalling	ON/OFF indication 1 lamp
Signalling circuit voltage	AC: 230 V 50/60 Hz
mounting mode	Fixed
Mounting support	DIN rail
9 mm pitches	2
Colour	Grey
Mechanical durability	300000 cycles
Electrical durability	30000 cycles
Connections - terminals	Tunnel type terminals - 1 x 1.5...1 x 10 mm² - flexible Tunnel type terminals - 1 x 1.5...1 x 10 mm² - rigid Tunnel type terminals - 2 x 2.5 mm² - flexible Tunnel type terminals - 2 x 2.5 mm² - rigid Tunnel type terminals - 2 x 4 mm² - flexible Tunnel type terminals - 2 x 4 mm² - rigid
Wire stripping length	9 mm
Tightening torque	3.5 N.m

Environment
Standards	IEC EN 60669-1
IP degree of protection	IP4
Pollution degree	2
Tropicalisation	2

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8 cm
Package 1 Width	1.8 cm
Package 1 Length	7.5 cm
Package 1 Weight	0.058 kg

Contractual warranty
Warranty	18 months

вид

превключвател светещ
напрежение

240V

Описание

Main
Product or component type	Switch
Device short name	I
Device application	Control
poles description	1P
Utilisation category	AC-22A

Complementary
[Ie] rated operational current	32 A at 250 V AC 50/60 Hz
[Ue] rated operational voltage	250 V AC 50/60 Hz
[Ui] rated insulation voltage	250 V AC 50/60 Hz conforming to IEC 60947-3
[Uimp] rated impulse withstand voltage	4 kV
Control type	Toggle
Local signalling	ON/OFF indication 1 lamp
Signalling circuit voltage	AC: 230 V 50/60 Hz
mounting mode	Fixed
Mounting support	DIN rail
9 mm pitches	2
Colour	Grey
Mechanical durability	300000 cycles
Electrical durability	30000 cycles
Connections - terminals	Tunnel type terminals - 1 x 1.5...1 x 10 mm² - flexible Tunnel type terminals - 1 x 1.5...1 x 10 mm² - rigid Tunnel type terminals - 2 x 2.5 mm² - flexible Tunnel type terminals - 2 x 2.5 mm² - rigid Tunnel type terminals - 2 x 4 mm² - flexible Tunnel type terminals - 2 x 4 mm² - rigid
Wire stripping length	9 mm
Tightening torque	3.5 N.m

Environment
Standards	IEC EN 60669-1
IP degree of protection	IP4
Pollution degree	2
Tropicalisation	2

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8 cm
Package 1 Width	1.8 cm
Package 1 Length	7.5 cm
Package 1 Weight	0.058 kg

Contractual warranty
Warranty	18 months

Характеристики

вид

превключвател светещ
напрежение

240V
