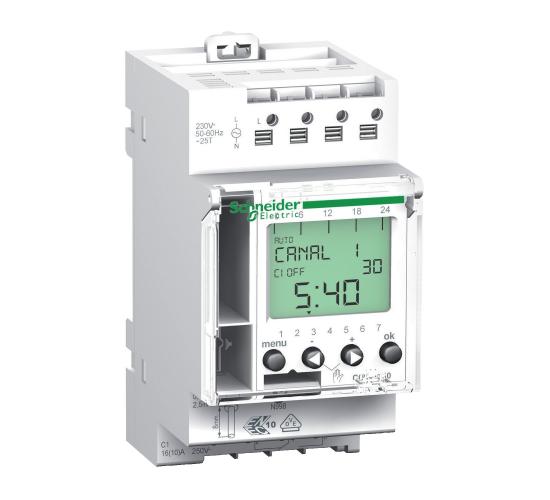

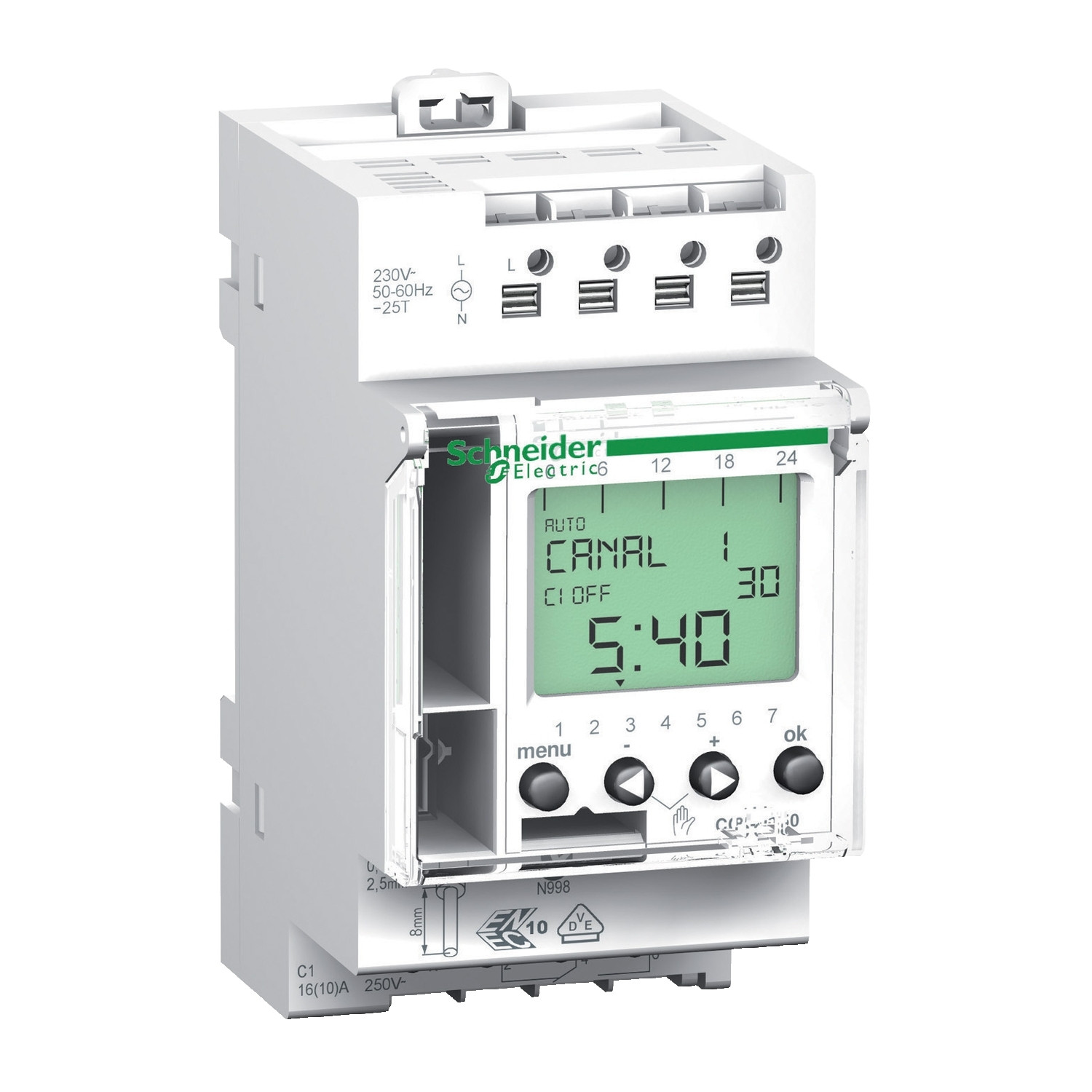

Интуитивно времереле IHP 1C 24h 7дни 16A
- Арт. №: 60217
- В наличност
Производител:
Интуитивно времереле IHP 1C 24h 16A Schneider Electric CCT15850
Цена на бр
126.86€
/ 248.12 лв.
Бърза поръчка
СЕРИЯ ASFORA
| range of product | Acti9 |
|---|---|
| product name | Acti9 IHP |
| Device short name | IHP |
| Product or component type | Programmable digital time switch |
| Device application | Building |
| Battery type | Lithium |
| Number of channels | 1 |
| User language | Danish Swedish Finnish Dutch French Norwegian English |
| Colour tint | White (RAL 9003) |
| Product compatibility | Mechanical compatibility with electrical distribution comb busbars |
|---|---|
| Power consumption in VA | 4 VA |
| Maximum switching current | 10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1 |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50/60 Hz |
| Accuracy | +/- 1 s/day 20 °C |
| Cycle duration | 24 hours + 7 days |
| Maximum number of switchings | 56 |
| Minimum interval duration | 1 min |
| Function available | Automatic winter/summer time changeover |
| Display type | Backlit LCD |
| Battery life | 6 year(s) |
| Backup time | 6 years time and program saving |
| Type of setting | Absence for holidays function |
| Connections - terminals | screwless terminals |
| Mounting support | DIN rail |
| 9 mm pitches | 5 |
| Width | 45 mm |
| Height | 85 mm |
| Depth | 66 mm |
| Function | None |
| Absence for holidays | Yes |
| Time changeover | Automatic |
| Updated by | None |
| Compatibility code | IHP |
-
Ампераж
16A
| range of product | Acti9 |
|---|---|
| product name | Acti9 IHP |
| Device short name | IHP |
| Product or component type | Programmable digital time switch |
| Device application | Building |
| Battery type | Lithium |
| Number of channels | 1 |
| User language | Danish Swedish Finnish Dutch French Norwegian English |
| Colour tint | White (RAL 9003) |
| Product compatibility | Mechanical compatibility with electrical distribution comb busbars |
|---|---|
| Power consumption in VA | 4 VA |
| Maximum switching current | 10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1 |
| [Ue] rated operational voltage | 230 V AC +/- 10 % at 50/60 Hz |
| Accuracy | +/- 1 s/day 20 °C |
| Cycle duration | 24 hours + 7 days |
| Maximum number of switchings | 56 |
| Minimum interval duration | 1 min |
| Function available | Automatic winter/summer time changeover |
| Display type | Backlit LCD |
| Battery life | 6 year(s) |
| Backup time | 6 years time and program saving |
| Type of setting | Absence for holidays function |
| Connections - terminals | screwless terminals |
| Mounting support | DIN rail |
| 9 mm pitches | 5 |
| Width | 45 mm |
| Height | 85 mm |
| Depth | 66 mm |
| Function | None |
| Absence for holidays | Yes |
| Time changeover | Automatic |
| Updated by | None |
| Compatibility code | IHP |
-
Ампераж
16A
