Часовници и релета

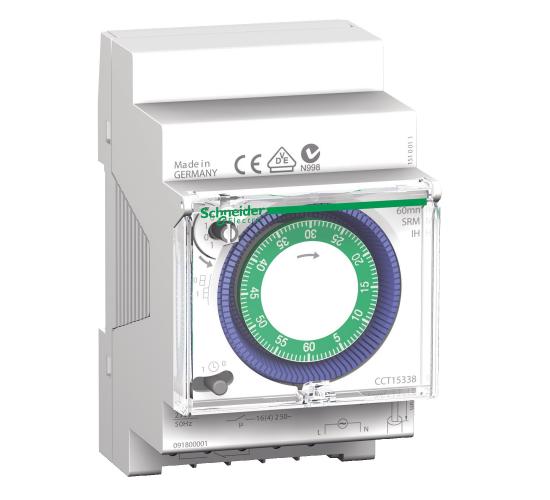

Механично времереле IH 60min 16A без памет
- Арт. №: 60206
- В наличност
Производител:
Механично времереле IH 60min 16A Schneider Electric CCT15338
Цена на бр
93.16€
/ 182.21 лв.
Бърза поръчка
СЕРИЯ ASFORA
| range of product | Acti9 |
|---|---|
| product name | Acti9 IH |
| Device short name | IH |
| Product or component type | Mechanical time switch |
| Number of channels | 1 |
| Function available | Manual time changeover |
| Device application | Building |
|---|---|
| Load type | 230 V AC halogen lamp 1000 W 230 V AC incandescent lamp 1100 W 230 V AC fluocompact lamp 600 VA Parallel-corrected fluorescent tube 2 x electronic ballast 40 W 12 µF Compact fluorescent lampelectronic ballast 25 W LED lamp < 2 W 20 W LED lamp 2...8 W 180 W |
| Cycle duration | 60 min |
| Maximum number of switchings | 48 on - 48 off |
| Minimum interval duration | 37.5 s |
| Type of setting | Manual time changeover |
| Power consumption in W | 0.9 W |
| Maximum switching current | 10 A - 250 V AC pf = 1 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 230 V AC - 15...10 % at 50 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Mounting support | DIN rail |
| 9 mm pitches | 6 |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screwless terminals |
| Clamping connection capacity | 2 x 0.5...2 .5 mm² |
| Width | 54 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Product weight | 0.184 kg |
| Standards | EN 60730-1 |
-
Ампераж
16A
| range of product | Acti9 |
|---|---|
| product name | Acti9 IH |
| Device short name | IH |
| Product or component type | Mechanical time switch |
| Number of channels | 1 |
| Function available | Manual time changeover |
| Device application | Building |
|---|---|
| Load type | 230 V AC halogen lamp 1000 W 230 V AC incandescent lamp 1100 W 230 V AC fluocompact lamp 600 VA Parallel-corrected fluorescent tube 2 x electronic ballast 40 W 12 µF Compact fluorescent lampelectronic ballast 25 W LED lamp < 2 W 20 W LED lamp 2...8 W 180 W |
| Cycle duration | 60 min |
| Maximum number of switchings | 48 on - 48 off |
| Minimum interval duration | 37.5 s |
| Type of setting | Manual time changeover |
| Power consumption in W | 0.9 W |
| Maximum switching current | 10 A - 250 V AC pf = 1 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 230 V AC - 15...10 % at 50 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Mounting support | DIN rail |
| 9 mm pitches | 6 |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screwless terminals |
| Clamping connection capacity | 2 x 0.5...2 .5 mm² |
| Width | 54 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Product weight | 0.184 kg |
| Standards | EN 60730-1 |
-
Ампераж
16A
