Часовници и релета

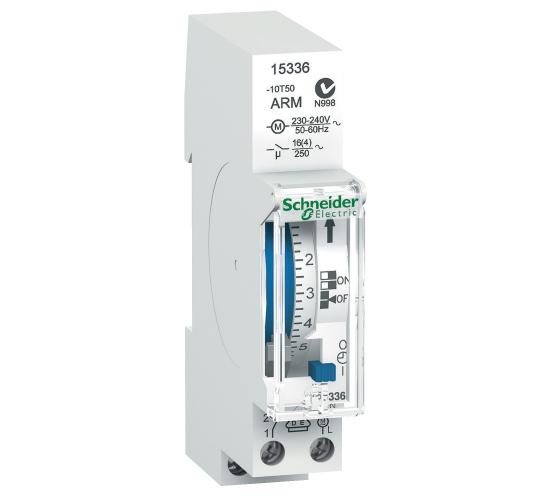

Механично времереле Acti 9 IH 24-100 часа 16A 100часа памет
- Арт. №: 60201
- В наличност
Производител:

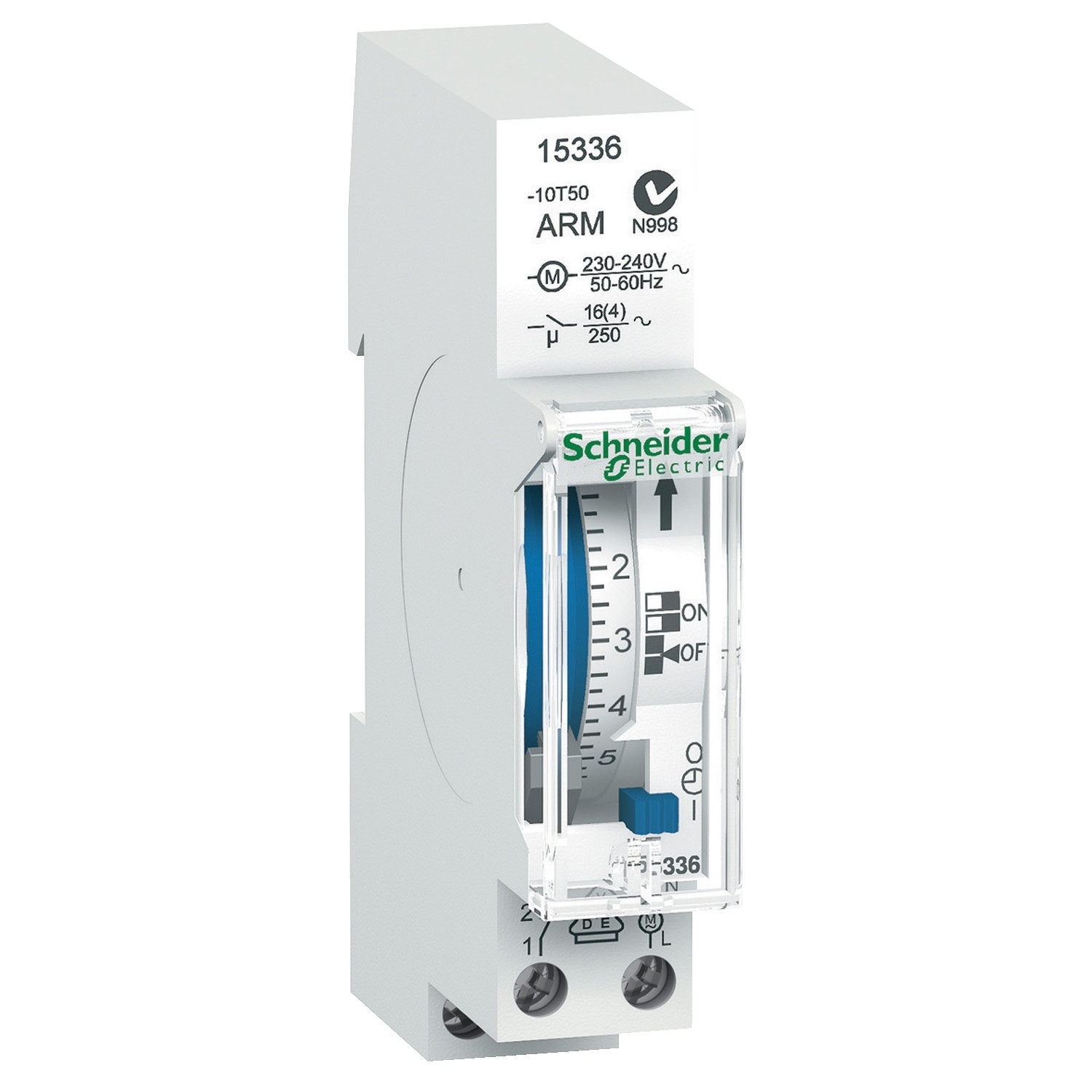

Механично времереле Acti 9 IH 24-100 часа 16A 18 с памет Schneider Electric 15336
Цена на бр
93.13€
/ 182.15 лв.
Бърза поръчка
СЕРИЯ ASFORA
| range of product | Acti9 |
|---|---|
| product name | Acti9 IH |
| Device short name | IH |
| Product or component type | Mechanical time switch |
| Number of channels | 1 |
| Function available | Manual time changeover |
| Device application | Building |
|---|---|
| Load type | Parallel-corrected fluorescent tube 5 x 58 W 4.7 µF Parallel-corrected fluorescent tube 7 x 40 W 7 µF Parallel-corrected fluorescent tube 2 x 100 W 18 µF 230 V AC halogen lamp 1000 W 230 V AC incandescent lamp 1000 W Fluocompact lamp 700 VA Compact fluorescent lamp 150 W LED lamp < 2 W 30 W LED lamp > 2 W 300 W |
| Cycle duration | 24 h |
| Maximum number of switchings | 48 on - 48 off |
| Minimum interval duration | 15 min |
| Type of setting | Manual time changeover |
| Measurement accuracy | +/- 1 s/day 20 °C |
| Power consumption in W | 0.5 W |
| Maximum switching current | 16 A - 250 V AC pf = 1 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 230...240 V AC at 50...60 Hz |
| Battery life | 10 year(s) |
| Backup time | 150 h time and program saving |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screw terminals |
| Width | 18 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Product weight | 0.101 kg |
-
Ампераж
16A
| range of product | Acti9 |
|---|---|
| product name | Acti9 IH |
| Device short name | IH |
| Product or component type | Mechanical time switch |
| Number of channels | 1 |
| Function available | Manual time changeover |
| Device application | Building |
|---|---|
| Load type | Parallel-corrected fluorescent tube 5 x 58 W 4.7 µF Parallel-corrected fluorescent tube 7 x 40 W 7 µF Parallel-corrected fluorescent tube 2 x 100 W 18 µF 230 V AC halogen lamp 1000 W 230 V AC incandescent lamp 1000 W Fluocompact lamp 700 VA Compact fluorescent lamp 150 W LED lamp < 2 W 30 W LED lamp > 2 W 300 W |
| Cycle duration | 24 h |
| Maximum number of switchings | 48 on - 48 off |
| Minimum interval duration | 15 min |
| Type of setting | Manual time changeover |
| Measurement accuracy | +/- 1 s/day 20 °C |
| Power consumption in W | 0.5 W |
| Maximum switching current | 16 A - 250 V AC pf = 1 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 230...240 V AC at 50...60 Hz |
| Battery life | 10 year(s) |
| Backup time | 150 h time and program saving |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Colour tint | White (RAL 9003) |
| Connections - terminals | Screw terminals |
| Width | 18 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Product weight | 0.101 kg |
-
Ампераж
16A
