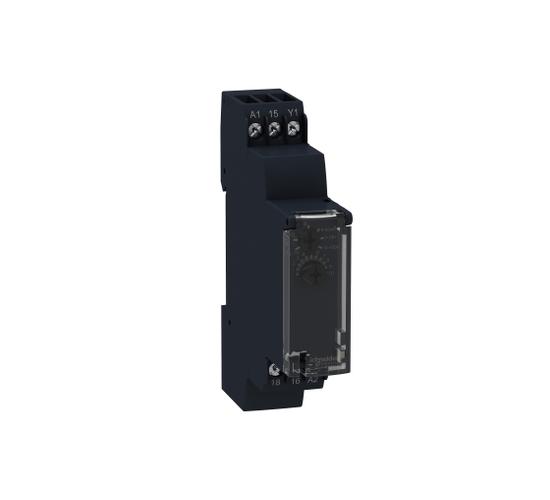

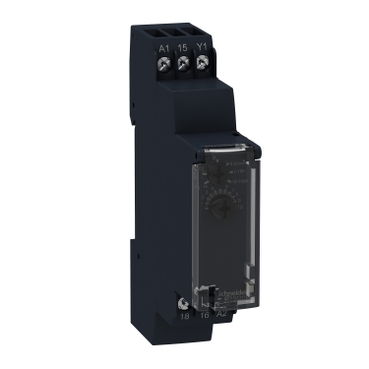

Реле време закъснение на изключване 0,1s-100h RE11LCBM 24-240V
- Арт. №: 90144
- В наличност
Производител:
Реле време закъснение на изключване 0,1s-100h RE11LCBM 24-240V
Цена на бр
53.63€
/ 104.89 лв.
Бърза поръчка
СЕРИЯ ASFORA
| Range of product | Zelio Time |
|---|---|
| Product or component type | Modular timing relay |
| Discrete output type | Solid state |
| Width pitch dimension | 17.5 mm |
| Component name | RE11L |
| Time delay type | C |
| Time delay range | 0.1...1 s 6...60 min 1...10 min 1...10 h 10...100 h 1...10 s 6...60 s |
| [Us] rated supply voltage | 24...240 V AC at 50/60 Hz |
| Control type | Selector switch front panel |
|---|---|
| Voltage range | 0.85...1.1 Us |
| nominal output current | 0.7 A |
| Connections - terminals | Screw terminals, 1 x 4 mm² without cable end Screw terminals, 2 x 1.5 mm² with cable end Screw terminals, 2 x 2.5 mm² without cable end |
| Housing material | Self-extinguishing |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Minimum pulse duration | 0.05 s |
| Reset time | 350 ms on de-energisation |
| On-load factor | 100 % |
| Power consumption in VA | 32 VA at 240 V |
| Breaking capacity | 0.5 A AC/DC conforming to UL 0.7 A AC/DC at 20 °C |
| Maximum output current | 20 A |
| minimum switching current | 10 mA |
| Maximum leakage current | 5 mA |
| maximum switching voltage | 250 V |
| Maximum voltage drop | <4 V 3-wire <8 V 2-wire |
| Electrical durability | 100000000 cycles |
| Mechanical durability | 100000000 cycles |
| Marking | CE |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Surge withstand | 1 kV differential mode conforming to IEC 61000-4-5 level 3 2 kV common mode conforming to IEC 61000-4-5 level 3 |
| Mounting support | 35 mm symmetrical mounting rail conforming to EN 50022 |
| Net weight | 0.06 kg |
-
вид
реле закъснение
