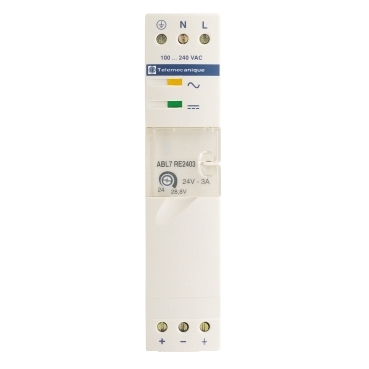

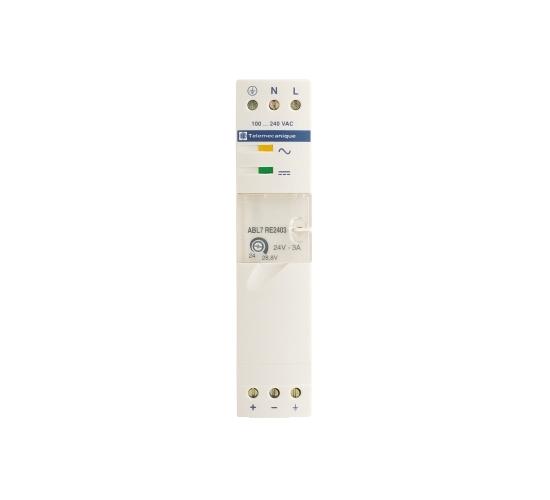

Захранващ блок ABL7RE2403 240VAC/24VDC/3A
- Арт. №: 90351
- В наличност
Производител:
ABL7RE2403 240VAC/24VDC/3A
Цена на бр
136.40€
/ 266.78 лв.
Бърза поръчка
СЕРИЯ ASFORA
96.94 €
/ 189.60 лв.
Токов трансформатор тропикализиран с два изхода 4000/5
Арт. №: 93401
204.77 €
/ 400.50 лв.
| Range of product | Modicon Power Supply |
|---|---|
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 200...240 V AC phase to phase, terminal(s): L1-L2 200...240 V AC single phase, terminal(s): N-L1 |
| Rated power in W | 60 W |
| Output voltage | 24 V DC |
| Power supply output current | 2.5 A |
| Anti-harmonic filter | Low frequency harmonic currents |
| Input voltage limits | 170...264 V AC |
|---|---|
| Input protection type | Integrated fuse (not interchangeable) |
| Inrush current | 90 A |
| Power factor | 0.5 at 24 V DC |
| Efficiency | 84 % |
| Output voltage adjustment | 22.2...28.8 V adjustable |
| Power dissipation in W | 11.4 W |
| Current consumption | 0.7 A 240 V AC |
| Provided equipment | Power factor correction filter conforming to IEC 61000-3-2 |
| Residual ripple | 200 mV |
| Output protection type | Against undervoltage, protection technology: tripping if U < 19 V Against short-circuits |
| Connections - terminals | Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection Screw type terminals: 4 x 0.14...4 x 2.5 mm², (AWG 26...AWG 14) for output connection |
| Status LED | 1 LED (green) output voltage |
| Output coupling | Series Parallel |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail panel 2 screws, diameter : 4 mm 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 3000 V with between input and output |
| Standards | EN/IEC 62368-1 |
|---|---|
| Product certifications | EAC TUV 60950-1 CULus 508 |
| Environmental characteristic | EMC conforming to EN 55022 class B EMC conforming to IEC 61000-6-3 EMC conforming to IEC 61000-6-2 EMC conforming to EN/IEC 61204-3 Safety conforming to IEC 60950-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -25…55 °C without derating mounting position A < 2000 m |
-
вид
захранващ блок
-
ампераж
3А
| Range of product | Modicon Power Supply |
|---|---|
| Product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Nominal input voltage | 200...240 V AC phase to phase, terminal(s): L1-L2 200...240 V AC single phase, terminal(s): N-L1 |
| Rated power in W | 60 W |
| Output voltage | 24 V DC |
| Power supply output current | 2.5 A |
| Anti-harmonic filter | Low frequency harmonic currents |
| Input voltage limits | 170...264 V AC |
|---|---|
| Input protection type | Integrated fuse (not interchangeable) |
| Inrush current | 90 A |
| Power factor | 0.5 at 24 V DC |
| Efficiency | 84 % |
| Output voltage adjustment | 22.2...28.8 V adjustable |
| Power dissipation in W | 11.4 W |
| Current consumption | 0.7 A 240 V AC |
| Provided equipment | Power factor correction filter conforming to IEC 61000-3-2 |
| Residual ripple | 200 mV |
| Output protection type | Against undervoltage, protection technology: tripping if U < 19 V Against short-circuits |
| Connections - terminals | Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection Screw type terminals: 4 x 0.14...4 x 2.5 mm², (AWG 26...AWG 14) for output connection |
| Status LED | 1 LED (green) output voltage |
| Output coupling | Series Parallel |
| Marking | CE |
| Mounting support | 35 x 7.5 mm symmetrical DIN rail panel 2 screws, diameter : 4 mm 35 x 15 mm symmetrical DIN rail |
| Operating position | Vertical |
| Supply | SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| Dielectric strength | 3000 V with between input and output |
| Standards | EN/IEC 62368-1 |
|---|---|
| Product certifications | EAC TUV 60950-1 CULus 508 |
| Environmental characteristic | EMC conforming to EN 55022 class B EMC conforming to IEC 61000-6-3 EMC conforming to IEC 61000-6-2 EMC conforming to EN/IEC 61204-3 Safety conforming to IEC 60950-1 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -25…55 °C without derating mounting position A < 2000 m |
-
вид
захранващ блок
-
ампераж
3А
