Контактори

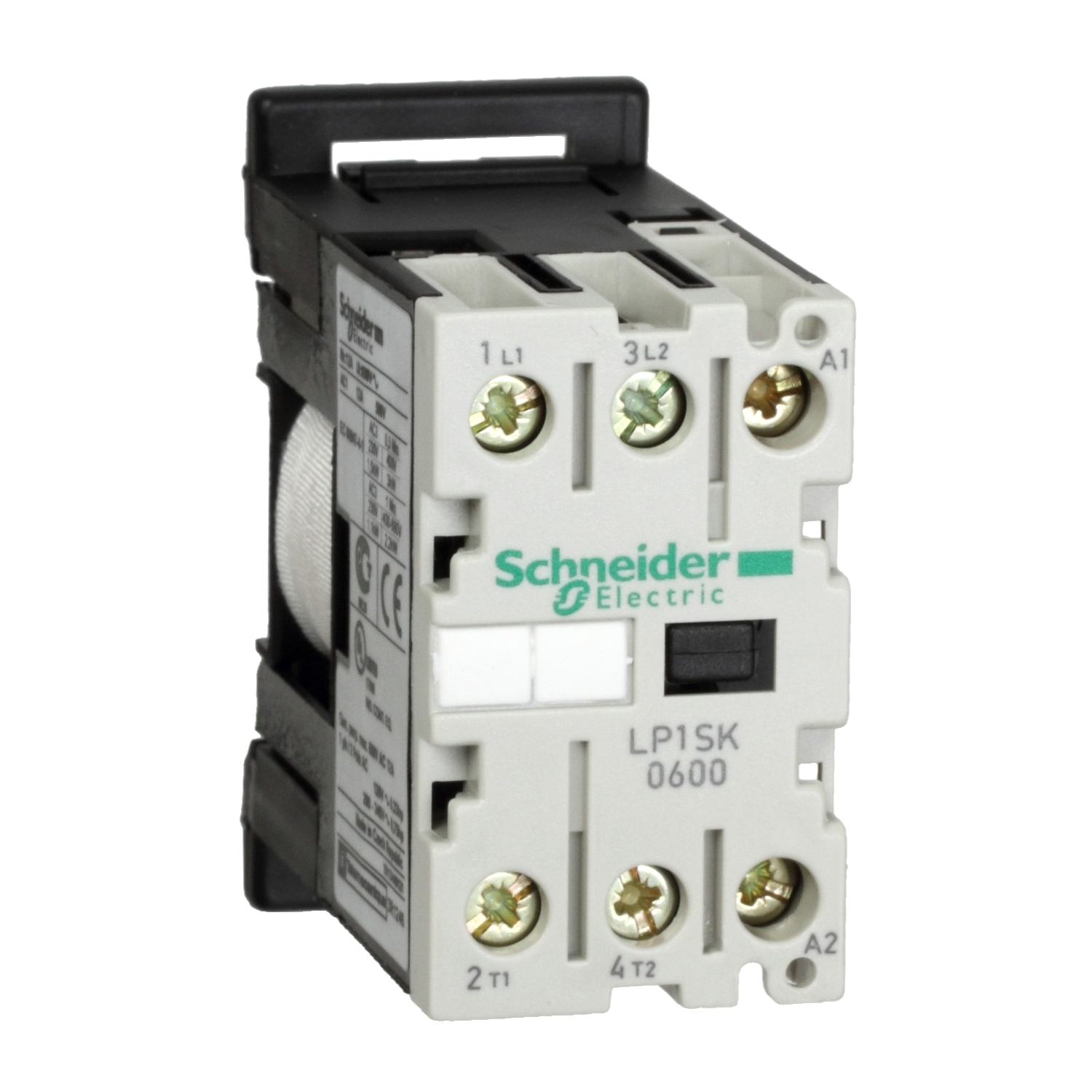

Мини контактор 27мм 12А 24 VDC LP1SK0600BD 2P SK 1.1KW
- Арт. №: 20354
- Няма наличност
Производител:
Цена на бр
42.46€
/ 83.04 лв.
Бърза поръчка
СЕРИЯ ASFORA
| Product or component type | Mini contactor |
|---|---|
| Device short name | LP1SK |
| Contactor application | Resistive load |
| Utilisation category | AC-1 |
| power pole contact composition | 2P |
| Pole contact composition | 2 NO |
| [Ue] rated operational voltage | Power circuit: 690 V AC 50/60 Hz |
| [Ie] rated operational current | 12 A (at <55 °C) AC AC-1 |
| Control circuit type | DC standard |
| [Uc] control circuit voltage | 24 V DC |
| [Ith] conventional free air thermal current | 12 A (at 55 °C) for power circuit |
| Irms rated making capacity | 66 A at 690 V AC conforming to IEC 60947 66 A at 690 V AC conforming to NF C 63-110 |
| Rated breaking capacity | 52 A at <= 400 V for power circuit conforming to NF C 63-110 52 A at <= 400 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 50 A 55 °C for power circuit |
| Associated fuse rating | 16 A gI at <= 440 V for power circuit conforming to IEC 60947 |
| Average impedance | 4 mOhm - Ith 12 A 50 Hz |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947 690 V conforming to VDE 0110 group C 690 V conforming to BS 5424 690 V conforming to UL 508 690 V conforming to CSA C22.2 No 14 |
| Mounting support | Rail |
| Standards | EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Product certifications | CB Scheme CE UKCA EAC cULus |
| Connections - terminals | Power circuit: connector 1 cable(s) 0.35…6 mm²flexible with cable end Power circuit: connector 1 cable(s) 0.5…6 mm²flexible without cable end Power circuit: connector 1 cable(s) 1.5…6 mm²solid Power circuit: connector 2 cable(s) 0.35…1.5 mm²flexible with cable end Power circuit: connector 2 cable(s) 0.35…2.5 mm²flexible without cable end Power circuit: connector 2 cable(s) 1.5…4 mm²solid |
| Tightening torque | 0.8 N.m - on connector - with screwdriver pozidriv No 1 |
| Operating time | 4...6 ms coil de-energisation and NO opening 8...12 ms coil energisation and NO closing |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 1200 cyc/h |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc (at <50 °C) Drop-out: 0.1...0.75 Uc (at <50 °C) |
|---|---|
| Inrush power in W | 2.2 W (at 20 °C) |
| Hold-in power consumption in W | 2.2 W at 20 °C |
| Heat dissipation | 2.2 W |
| IP degree of protection | IP2X conforming to VDE 0106 |
|---|---|
| Protective treatment | TC conforming to IEC 60068 TC conforming to DIN 50015 |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -50…70 °C |
| Operating altitude | 2000 m without derating |
| Height | 56 mm |
| Width | 27 mm |
| Depth | 55.5 mm |
| Product weight | 0.132 kg |
-
ампераж
12A
-
напрежение
24VDC
-
брой контактни групи
2NO
