Термомагнитен моторен прекъсвач 60-100А
- Арт. №: 80120
- В наличност
Производител:

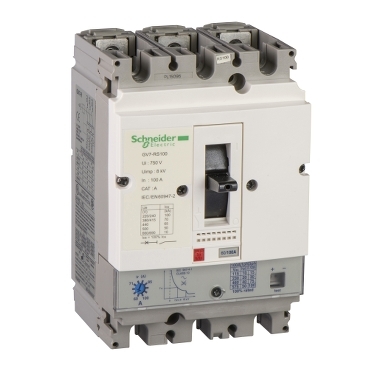

Термомагнитен моторен прекъсвач 60-100А GV7RS100
Цена на бр
498.47€
/ 974.92 лв.
Бърза поръчка
СЕРИЯ ASFORA
| Range | TeSys |
|---|---|
| product name | TeSys GV7 |
| Product or component type | Circuit breaker |
| Device short name | GV7R |
| Device application | Motor |
| Poles description | 3P |
| network type | AC |
| Utilisation category | AC-3 conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Breaking capacity | 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| thermal protection adjustment range | 60…100 A |
| Trip unit technology | Thermal-magnetic |
| Mounting mode | By screws By clips |
|---|---|
| Mounting support | Kit for fixing the switchgear Rail Flush Panel mounting |
| Mounting position | Vertical |
| Motor power kW | 45 kW at 400...415 V AC 50/60 Hz 75 kW at 660...690 V AC 50/60 Hz |
| control type | Rocker lever |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current | 100 A conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| power dissipation per pole | 5 W |
| Power dissipation per pole | 5 W |
| Mechanical durability | 50000 cycles |
| Electrical durability | 30000 cycles for AC-3 at 440 V In 50000 cycles for AC-3 at 440 V In/2 |
| maximum operating rate | 25 cyc/h |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Connection pitch | 35 mm without spreaders 45 mm with spreaders |
| Connections - terminals | Bars Cable with lug - external diameter: 10 mm Screw Bare cable connectors 1.5…95 mm² |
| Tightening torque | 10 N.m on screw M6 screw type 15 N.m on bare cable connectors for cable 1.5…95 mm² |
| Mechanical robustness | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations: 2.5 Gn, 0...25 Hz conforming to IEC 60068-2-6 |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 § 7-2-1-5-2 |
| Height | 161 mm |
| Width | 105 mm |
| Depth | 111 mm |
| Net weight | 2.04 kg |
-
Ампераж
60-100A
-
серия
Tesys
| Range | TeSys |
|---|---|
| product name | TeSys GV7 |
| Product or component type | Circuit breaker |
| Device short name | GV7R |
| Device application | Motor |
| Poles description | 3P |
| network type | AC |
| Utilisation category | AC-3 conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Breaking capacity | 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
| thermal protection adjustment range | 60…100 A |
| Trip unit technology | Thermal-magnetic |
| Mounting mode | By screws By clips |
|---|---|
| Mounting support | Kit for fixing the switchgear Rail Flush Panel mounting |
| Mounting position | Vertical |
| Motor power kW | 45 kW at 400...415 V AC 50/60 Hz 75 kW at 660...690 V AC 50/60 Hz |
| control type | Rocker lever |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ith] conventional free air thermal current | 100 A conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| power dissipation per pole | 5 W |
| Power dissipation per pole | 5 W |
| Mechanical durability | 50000 cycles |
| Electrical durability | 30000 cycles for AC-3 at 440 V In 50000 cycles for AC-3 at 440 V In/2 |
| maximum operating rate | 25 cyc/h |
| Rated duty | Continuous conforming to IEC 60947-4-1 |
| Connection pitch | 35 mm without spreaders 45 mm with spreaders |
| Connections - terminals | Bars Cable with lug - external diameter: 10 mm Screw Bare cable connectors 1.5…95 mm² |
| Tightening torque | 10 N.m on screw M6 screw type 15 N.m on bare cable connectors for cable 1.5…95 mm² |
| Mechanical robustness | Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations: 2.5 Gn, 0...25 Hz conforming to IEC 60068-2-6 |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 § 7-2-1-5-2 |
| Height | 161 mm |
| Width | 105 mm |
| Depth | 111 mm |
| Net weight | 2.04 kg |
-
