Серия Unica

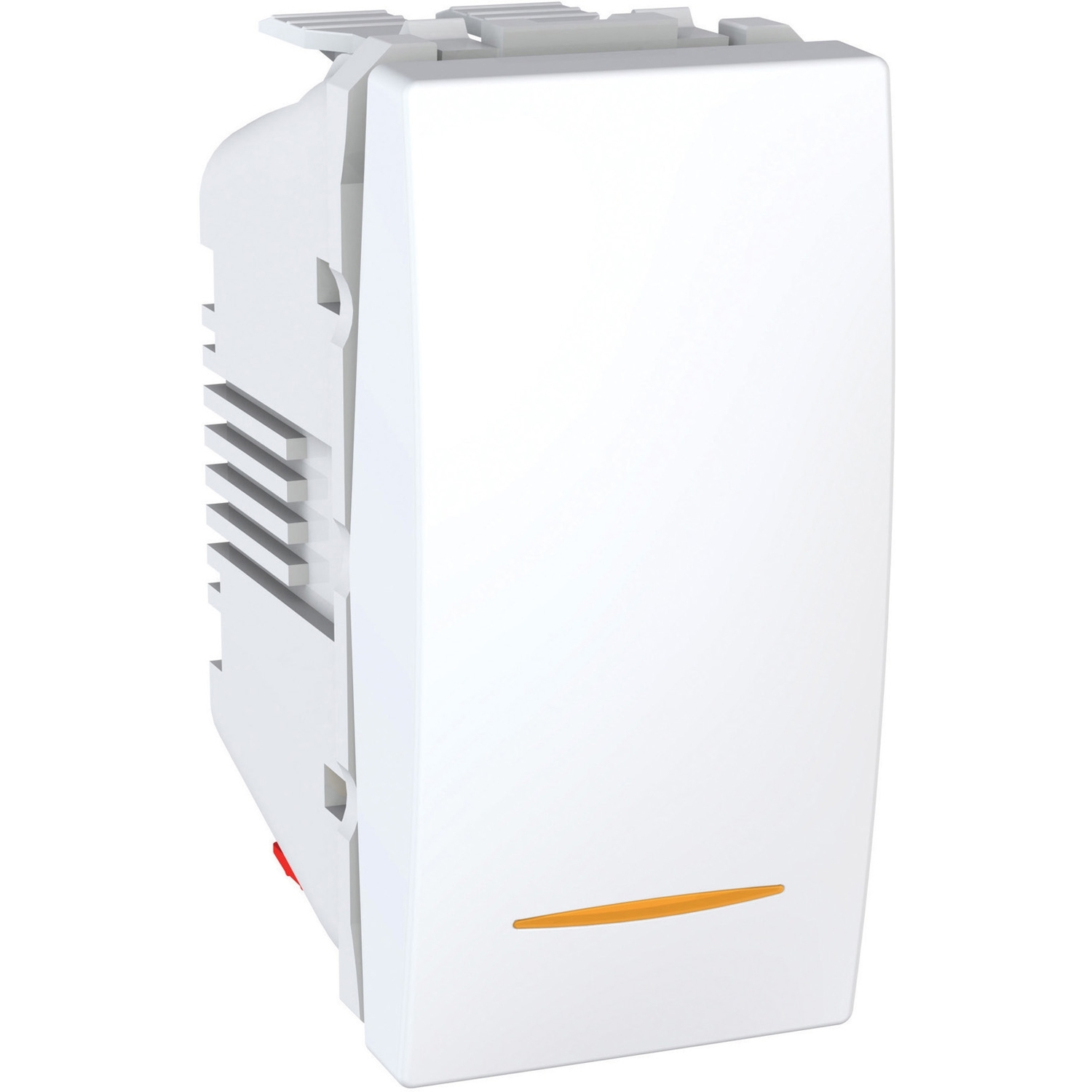

Ключ единичен схема 1 светещ 1м MGU3.101.18S
- Арт. №: 130109
- В наличност
Производител:
Цена на бр
10.87€
/ 21.26 лв.
Бърза поръчка
СЕРИЯ ASFORA
7.57 €
/ 14.81 лв.
Сериен ключ 10А двумодулен слонова кост New Unica NU321144
Арт. №: 130255
7.15 €
/ 13.98 лв.
| Range of product | Unica |
|---|---|
| Aesthetic name | Unica (standard aesthetic) |
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 1-pole 1-way |
| Number of rocker | 1 |
| Device application | Light control |
| Provided equipment | Internal power connection |
| Colour tint | White |
| Rated current | 10 AX |
|---|---|
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 10000 cycles |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Pilot light | LED, colour: amber, current consumption: 0.15 mA, temperature rise: 15 °C |
| Connections - terminals | Screwless terminals |
| Cable cross section | 0…2.5 mm² rigid cable 0…2.5 mm² flexible cable |
| Material | ASA + PC: mechanism cover |
| fixing mode | Clip-in |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 34 mm |
| Embedding depth | 22 mm |
| Product weight | 0.0195 kg |
| Ambient air temperature for operation | 25…35 °C |
| Ambient air temperature for storage | 0…50 °C |
| Standards | EN 60669-1 LV directive EMC directive |
-
вид
ключ единичен схема 1
-
цвят
бял
| Range of product | Unica |
|---|---|
| Aesthetic name | Unica (standard aesthetic) |
| Product or component type | Switch |
| Device presentation | Mechanism |
| Technology type | Electromechanical |
| Switch function | 1-pole 1-way |
| Number of rocker | 1 |
| Device application | Light control |
| Provided equipment | Internal power connection |
| Colour tint | White |
| Rated current | 10 AX |
|---|---|
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 10000 cycles |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Pilot light | LED, colour: amber, current consumption: 0.15 mA, temperature rise: 15 °C |
| Connections - terminals | Screwless terminals |
| Cable cross section | 0…2.5 mm² rigid cable 0…2.5 mm² flexible cable |
| Material | ASA + PC: mechanism cover |
| fixing mode | Clip-in |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 34 mm |
| Embedding depth | 22 mm |
| Product weight | 0.0195 kg |
| Ambient air temperature for operation | 25…35 °C |
| Ambient air temperature for storage | 0…50 °C |
| Standards | EN 60669-1 LV directive EMC directive |
-
вид
ключ единичен схема 1
-
цвят
бял
