ТРАНСФОРМАТОРИ

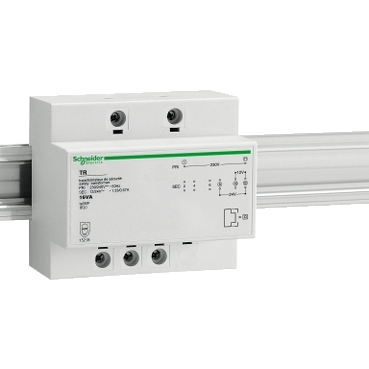

Трансформатор 220V/12V,24V-16VA-15218
- Арт. №: 60401
- В наличност
Производител:
Трансформатор 220V/12V,24V-16VA-15218
Цена на бр
72.02€
/ 140.86 лв.
Бърза поръчка
СЕРИЯ ASFORA
96.94 €
/ 189.60 лв.
Токов трансформатор тропикализиран с два изхода 4000/5
Арт. №: 93401
204.77 €
/ 400.50 лв.
| Transformer type | Safety transformer |
|---|---|
| Range of product | TR |
| Product or component type | Transformer |
| Device short name | TR |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
|---|---|
| Output voltage | 12/24 V: +/-5 % on load 14/28 V: off load |
| Output short-circuit protection | Built-in |
| Rated power in VA | 16 VA |
| mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 10 |
| Height | 89 mm |
| Width | 90 mm |
| Depth | 60 mm |
| Auxiliary connection terminal | Tunnel type terminals 4 mm² |
| Standards | EN 61558-2-6 IEC 61558-2-6 EN 60742 |
|---|---|
| product certifications | NF |
| Overvoltage category | Class II with terminal shields in option |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -25…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 1.083 kg |
| Warranty | 18 months |
|---|
-
вид
понижаващ трансформатор
-
мощност
16vA
| Transformer type | Safety transformer |
|---|---|
| Range of product | TR |
| Product or component type | Transformer |
| Device short name | TR |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
|---|---|
| Output voltage | 12/24 V: +/-5 % on load 14/28 V: off load |
| Output short-circuit protection | Built-in |
| Rated power in VA | 16 VA |
| mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 10 |
| Height | 89 mm |
| Width | 90 mm |
| Depth | 60 mm |
| Auxiliary connection terminal | Tunnel type terminals 4 mm² |
| Standards | EN 61558-2-6 IEC 61558-2-6 EN 60742 |
|---|---|
| product certifications | NF |
| Overvoltage category | Class II with terminal shields in option |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -25…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 1.083 kg |
| Warranty | 18 months |
|---|
-
вид
понижаващ трансформатор
-
мощност
16vA
