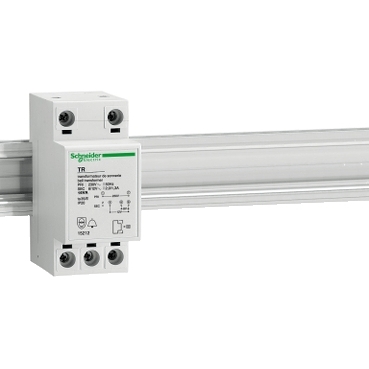

| Product or component type | Transformer |
|---|---|
| Device short name | TR |
| Transformer type | Bell transformer |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
|---|---|
| Output voltage | 12/24 V: +/- 15 % on load 16/32 V: off load |
| Output short-circuit protection | Built-in |
| Rated power in VA | 25 VA |
| mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| 9 mm pitches | 6 |
| Height | 89 mm |
| Width | 54 mm |
| Depth | 60 mm |
| Auxiliary connection terminal | Tunnel type terminals 4 mm² |
| Standards | EN 60742 IEC 61558-2-6 EN 61558-2-6 |
|---|---|
| product certifications | NF |
| Overvoltage category | Class II with terminal shields in option |
| Ambient air temperature for operation | -20…55 °C |
| Ambient air temperature for storage | -25…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 9.5 cm |
| Package 1 Length | 6 cm |
| Package 1 Weight | 0.633 kg |
| Warranty | 18 months |
|---|
вид
звънчев трансформатор
мощност
25vA
входно напрежение
230V
изходно напрежение
12V-24V
